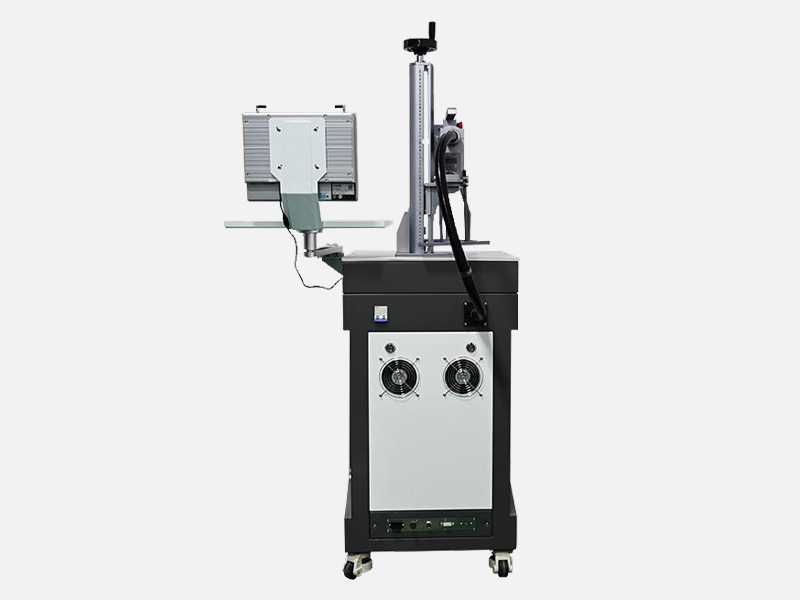

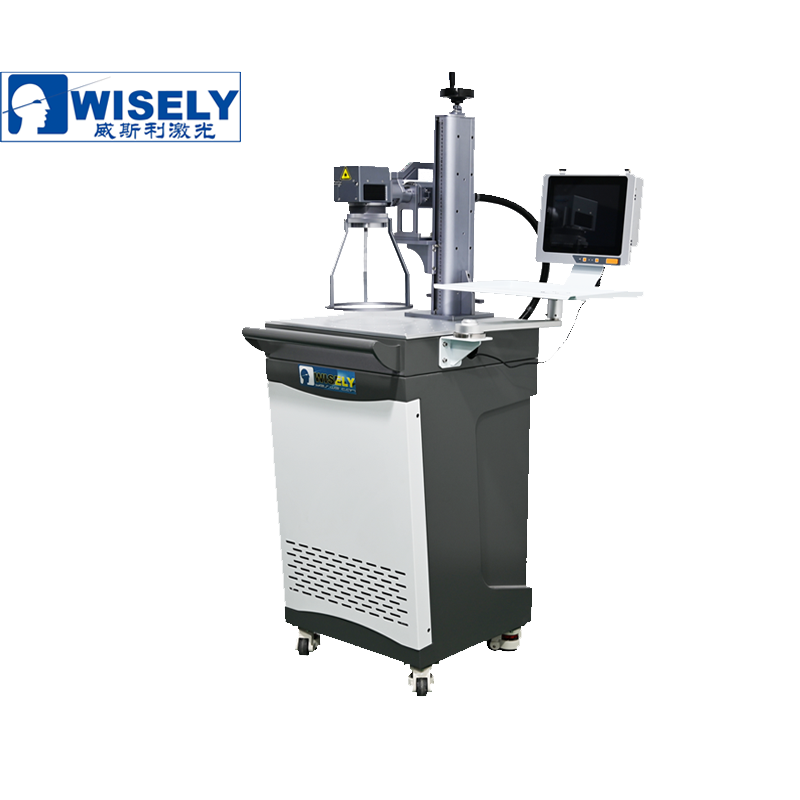

The Mobile and Handle-held Design makes the machine work indoors and outdoors, the operator can mark big, heavy or standing object easily. Just put the ring on the marking object, then press the button "Start" to fire the laser, the ring helps the operator find the focal length before marking.
0086-150-1350-9330
Feature
1) Long lifespan of fiber laser source: 100 000 - 200 000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.
7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS,
AutoCAD, Solidworks etc..
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical Parameters
| Model | MY-M30F | |||||||||
| Power | 30W / 50W / 100W / 120W | |||||||||
| Laser Wave length | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.003mm | |||||||||
| Fiber Laser Source | JPT LP | |||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
| Controller (software) | JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) | |||||||||
| Life span of Fiber Laser Module | 100,000hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1-600KHz | |||||||||
| Power Stability (8h) | <±1.5%rms | |||||||||
| System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits | |||||||||
| Cooling Mode | Aircooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 800*800*1660mm | |||||||||
| Package Size | 680*950*1850mm | |||||||||
| Net Weight | 80KG | |||||||||
| Gross Weight | 150KG | |||||||||
Optional Devices
payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Shipment
Machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days.
By Sea: 30-45 days. (Recommended)
Packaging
International standard plywooden case.
Warranty
Whole machine has a warranty period of 24 months since the production date.
Training
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
