Affordable Fiber Laser Marking Machine

Portable Style, easy to move and load the material, can work with customized automatic matching system. It can mark most metals, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
Contact information

0086-150-1350-9330

  • Technical Parameters



Feature
1) Long lifespan of fiber laser source: 100 000 hours.

2) Low consumption: <450W, more economical and environmental.

3) High Speed: 7000mm/s, faster than traditional machines.

4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.

5) No Consumables: One marker can work for more 8-10 years without any consumables.

6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.

9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from  CorelDraw, AI, PS, AutoCAD, Solidworks etc...

10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.


Application
1) Electronic Components:                       Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard.

2) Mechanical Parts:                                 Bearings, Gears, Standard Parts, Motor, etc.

3) Instrument:                                           Panel Board, Nameplates, Precision equipment, etc.

4) Hardware Tools:                                   Knives, Tools, Measuring Tools, Cutting Tools, etc.

5) Automobile Parts:                                Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6) Daily Necessities:                                Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Technical Parameters

Model MY-M20F-III
Power 20W / 30W / 50W / 100W / 120W
Laser Wavelength 1064nm
Standard Marking Area 150mm*150mm
Optional Marking Area 70*70 /100*100 /200*200 /250*250 /300*300 /400*400mm
Marking Depth ≤2mm
Marking Speed 7000mm/s
Minimum Line Width 0.015mm
Minimum Character 0.2mm
Repeated Precision ±0.003mm
Fiber Laser Source JPT LP (Optionlal Raycus or IPG)
Scan Head Galvo-Tech / WISE SCAN from China
Controller (software)

JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)

Life span of Fiber Laser Module 100 000 hours
Beam Quality M2<1.3
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100%
Output Frequency of Laser       1~600KHz
Power Stability (8h) <±1.5%rms
System Operation Environment Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits
Cooling Mode Aircooling
Voltage 220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Requirement <450W
Dimension (L*W*H) 700*400*650mm
Package Size 850*500*870mm
Net Weight 45KG
Gross Weight 75KG

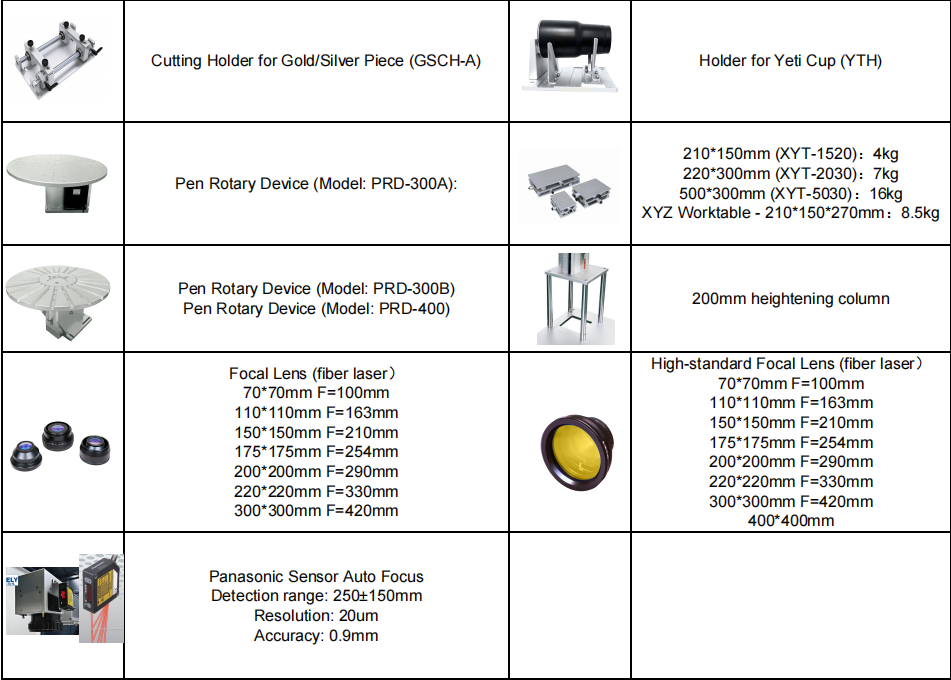

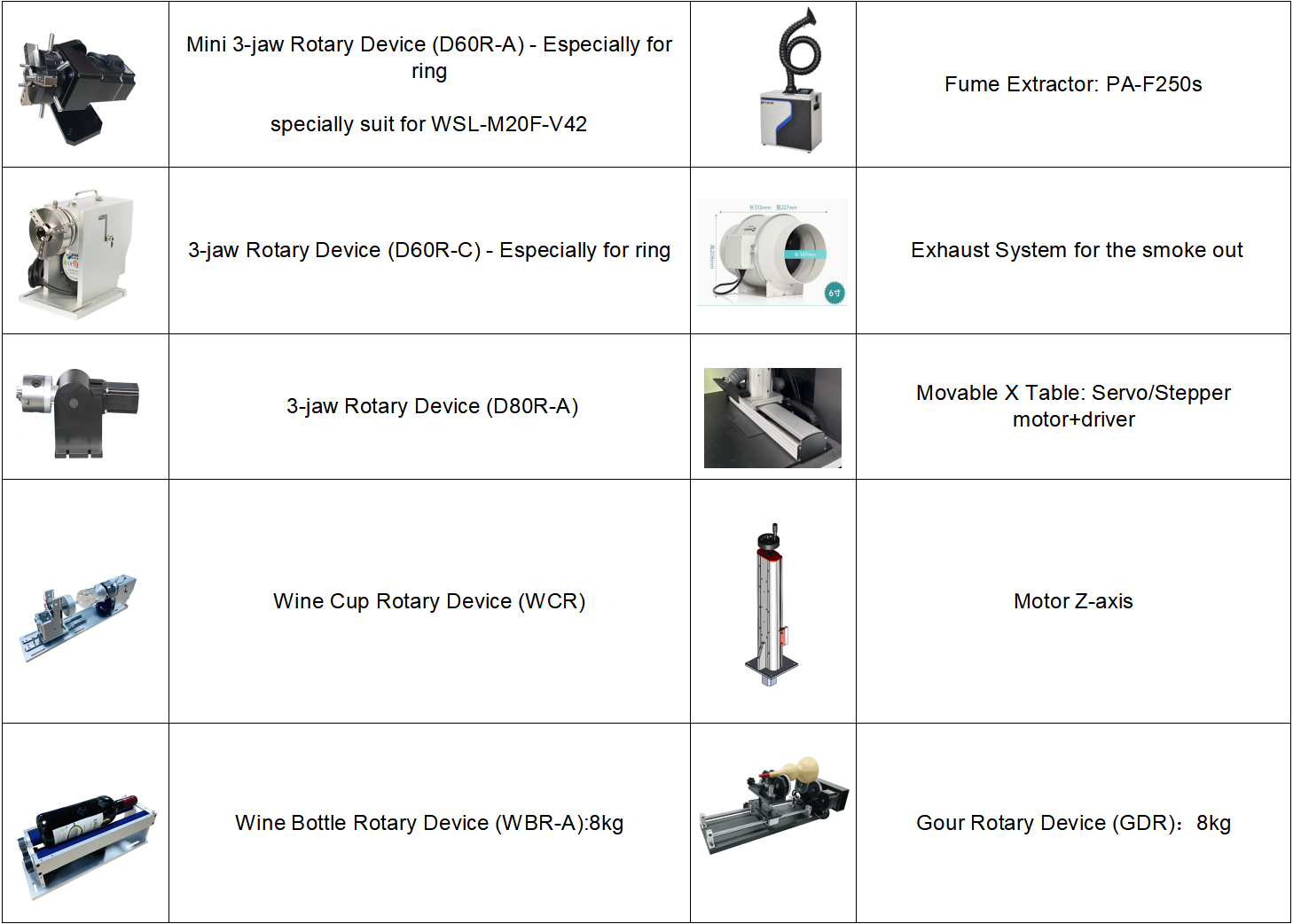

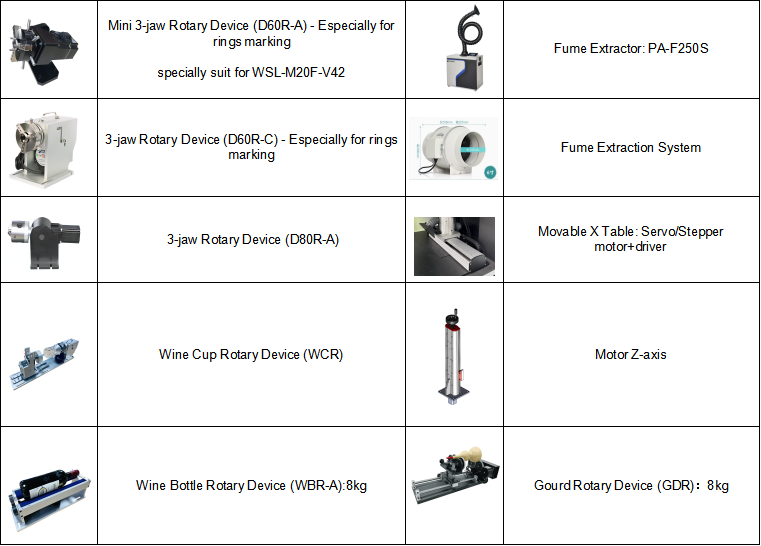

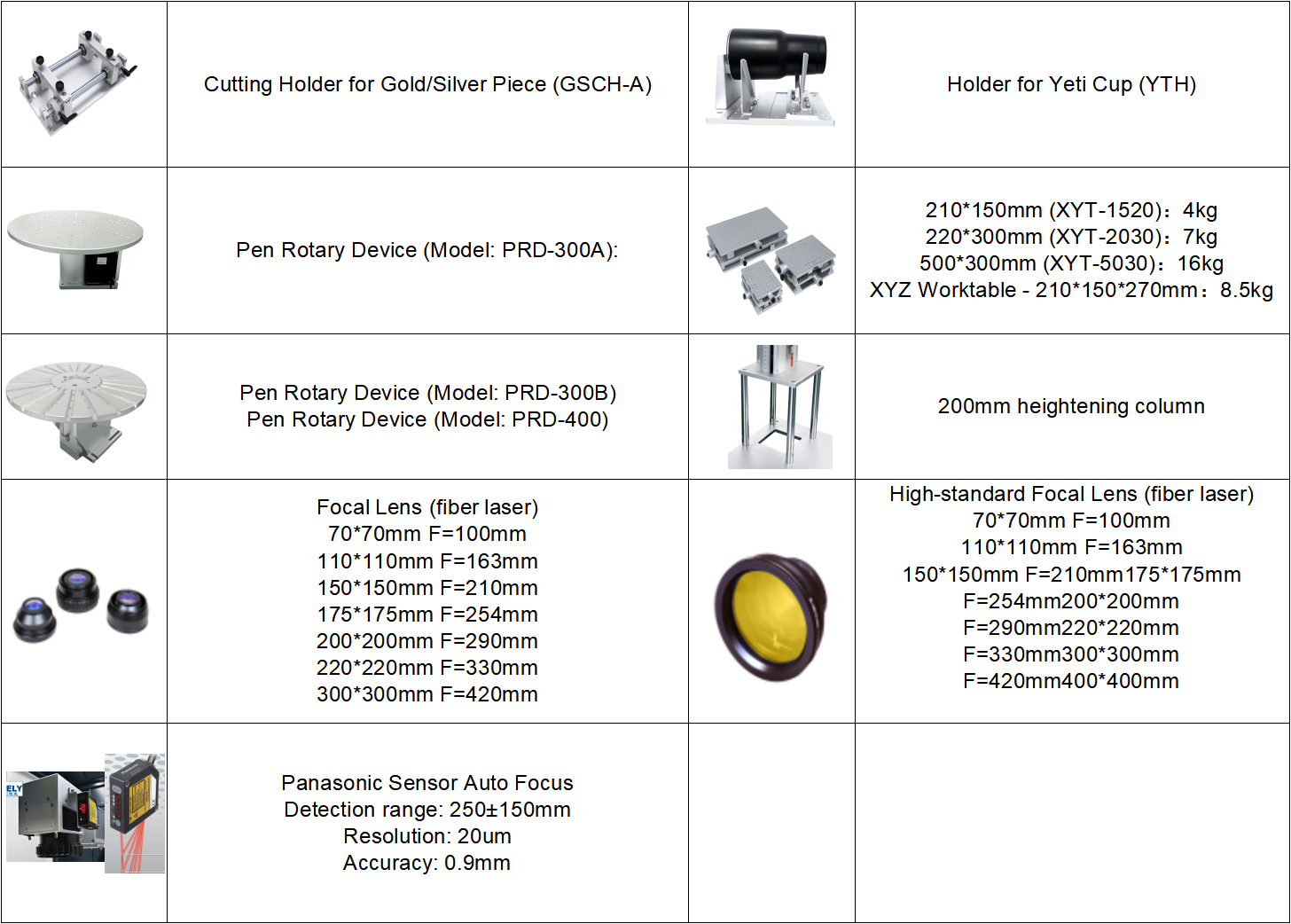

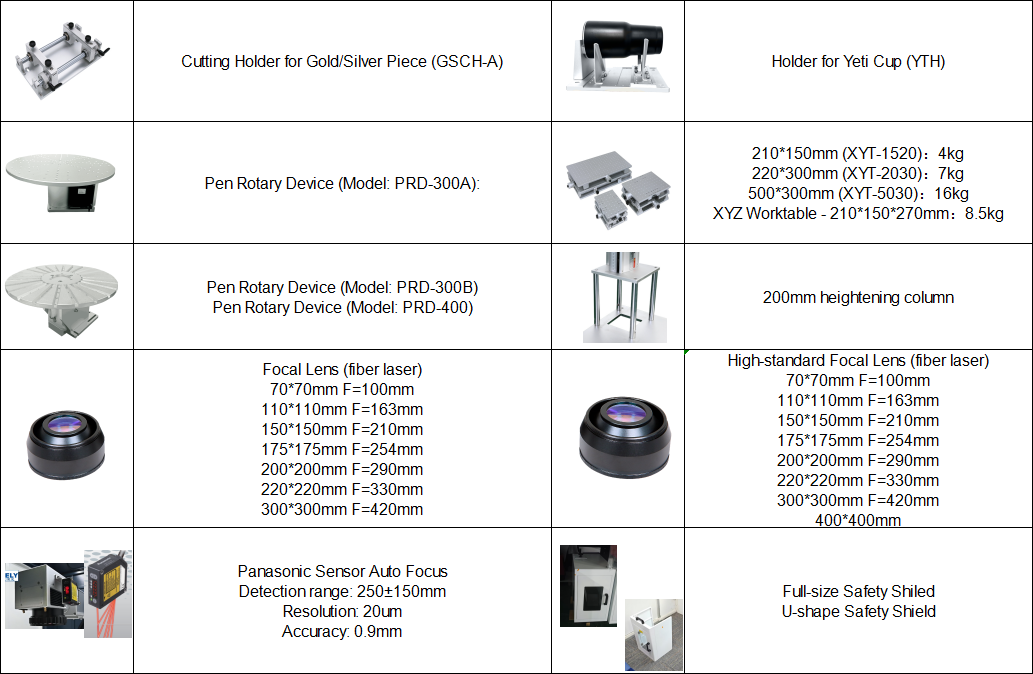

Optional Devices

Optional Devices-Fiber-水印.png

payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.


Shipment

Machine will be sent out 3-6 working days after receiving the payment.

By Express: 6-10 days. (Highly Recommended)

By Sea: 30-45 days.

Packaging

International standard plywooden case.

Warranty

Whole machine has a warranty period of 24 months since the production date.

Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
