Open worktable, easy to load the material and can work with customized automatic matching system. With computer and software, can use it directly, Equipped with automation, assembly line conveyor. Mopa fiber laser marking machine, Color Laser Engraving Machine can do: 1. Black and white engraving on most metals and some plastics. 2. Color engraving on stainless steel and titanium. 3. Black engraving on anodized aluminum.
0086-150-1350-9330
How to use fiber laser marking machine step by step - fiber laser tutorial:
1. How to use/ set up laser: https://youtu.be/bykEjEdHNH8
2. How to use fiber laser marking machine step by step - fiber laser tutorial：https://youtu.be/BsODOd8dO28
1. 0~2mm Deep Laser Engraving on Copper, Stainless, Aluminum steel: https://youtu.be/Bo6C8h7a9_c
2. 30 Watt Fiber Laser Deep Engraving on Stainless Dial: https://youtu.be/OX-FYdVZbz0
3. 50 Watt Fiber Laser Deep Engraving on Stainless: https://youtu.be/r5HqM_VH2t8
5. 100 Watts Fiber Laser Deep Engraving on Aluminum: https://youtu.be/n7hzp311ry8
Technical Parameters
| Model |
WSL-M30F-II WSL-M50F-II WSL-M60F-II |
|||||||||
| Power | 20W / 30W / 60W / 80W / 100W / 120W | |||||||||
| Laser Wavelength | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.003mm | |||||||||

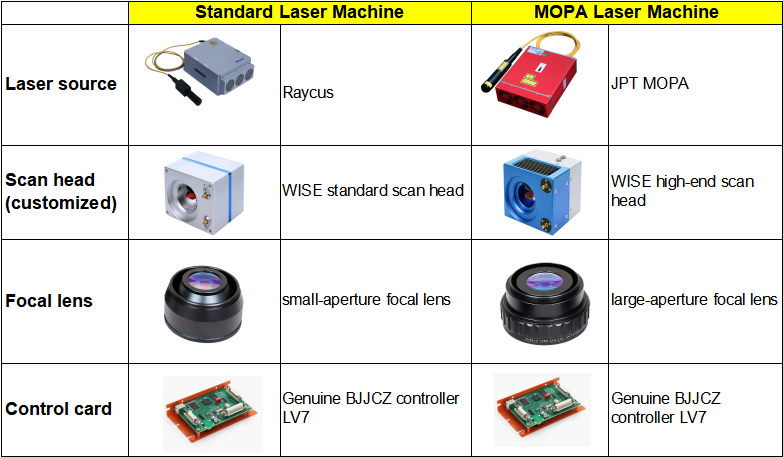

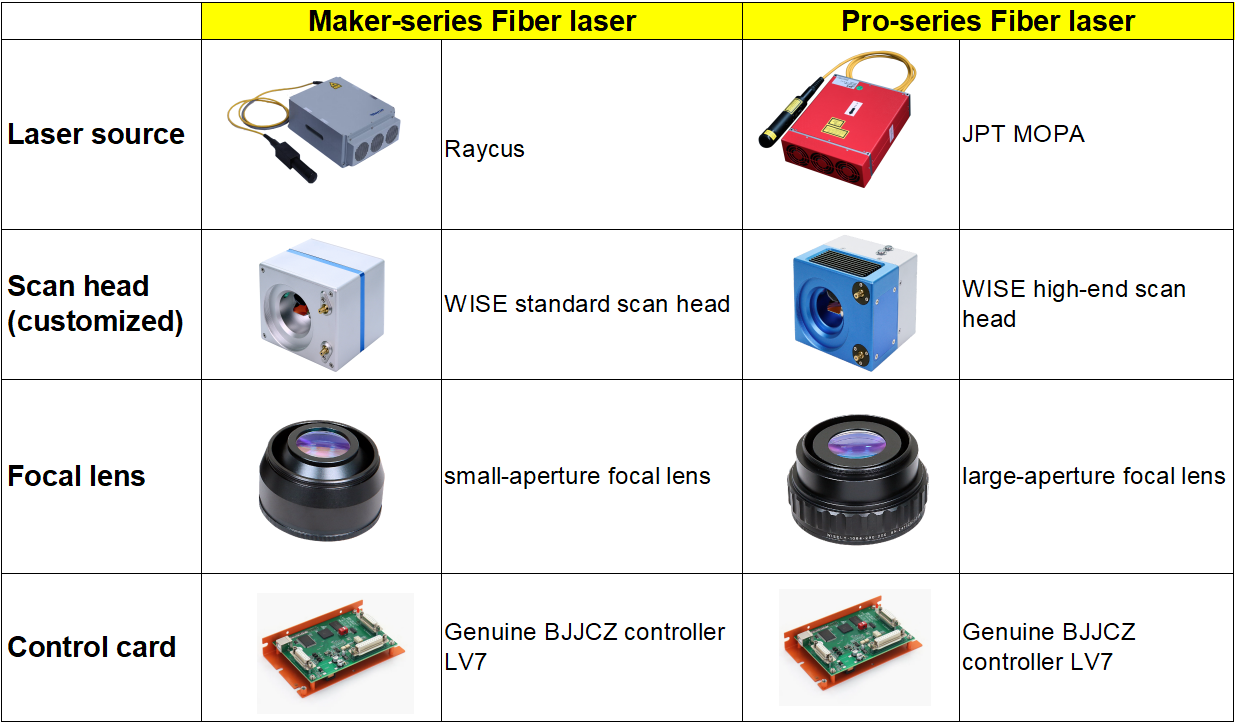

| Fiber Laser Source | JPT Mopa M7 (Optionlal IPG Mopa) | |||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
| Controller (software) | JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) | |||||||||
| Life span of Fiber Laser Module | 100 000 hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1K~4000KHz | |||||||||
| Output Q Pulse | 1-500Ns | |||||||||
| System Operation Environment | Windows 10 / 11 - 32 / 64bits | |||||||||
| Cooling Mode | Air-cooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 850*700*1360mm | |||||||||
| Package Size | 950*950*1050mm(Air shipping) / 1000*900*1550mm(Sea shipping) | |||||||||
| Net Weight | 140KG | |||||||||
| Gross Weight | 175KG | |||||||||

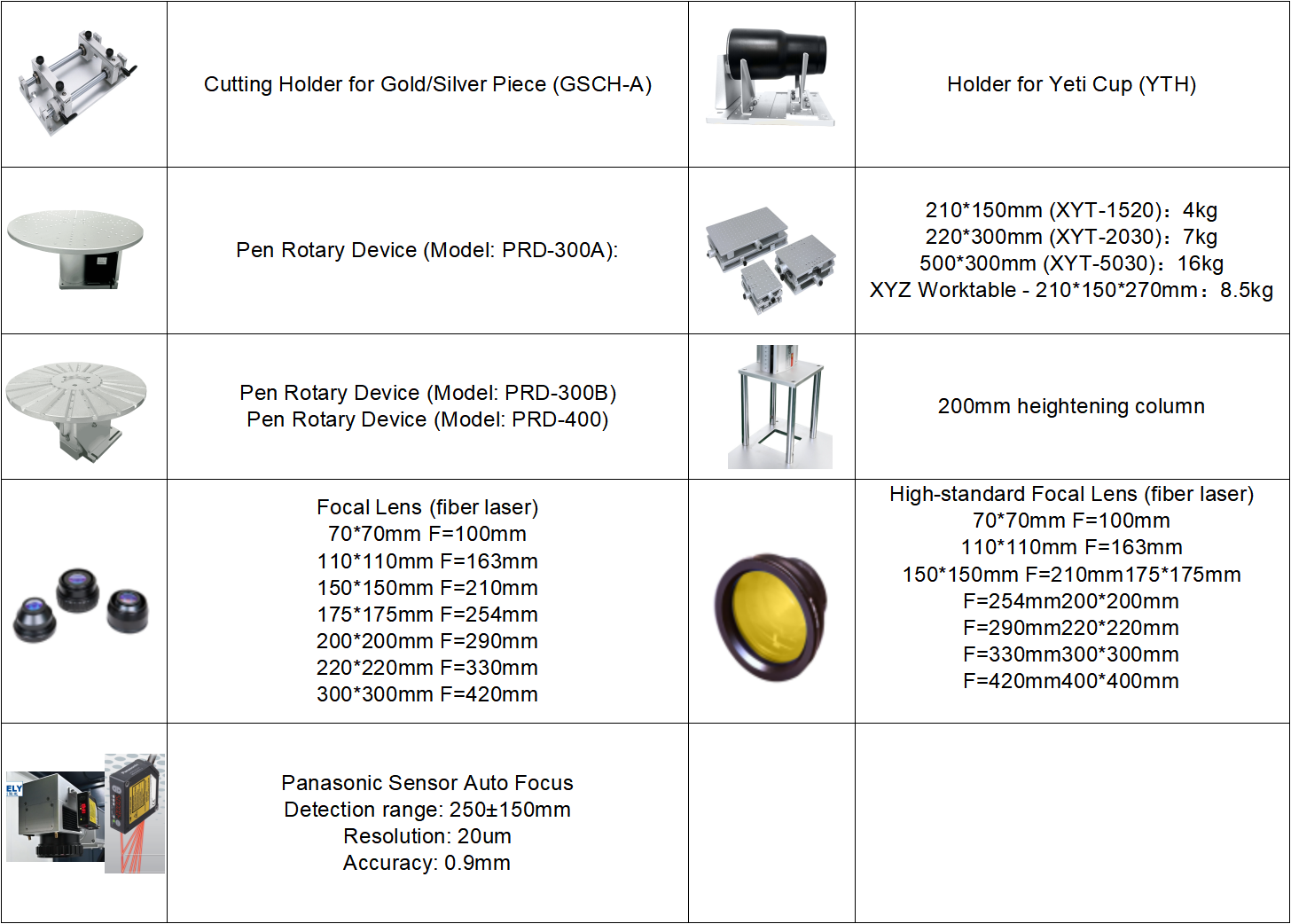

Optional Devices
Feature
1) Long lifespan of fiber laser source: 100,000 hours.
2) Low consumption: <450W, more economical and eco-friendly.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times that of traditional products.
5) No Consumables: The machine can operate for more than 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, with no need to adjust the optical path.
7) High-precision and high-speed scan head, with a good seal, capable of preventing dust and water, small volume, compact.
8) High-stability controller, USB interface, fast and stable data transmission, optimized path planning.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI, and other format files output from CorelDraw, AI, PS, AutoCAD, Solidworks, etc...
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motors, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zippers, Keychains, Sanitary Ware, etc.
Application material
| Aluminum | Gold | Silver | Stainless Steel | Brass | Titanium |
| Titanium | Copper | Platinum |
Carbide |
Nickel | Carbon steel |
| Iron | Chrome | Silicon | Plastic | Colored Acrylic | Hard plastic |
| Granite | Marble | Tile | ABS | PVC | Ceramic |
| Stone | PLA plastic | PBT plastic |

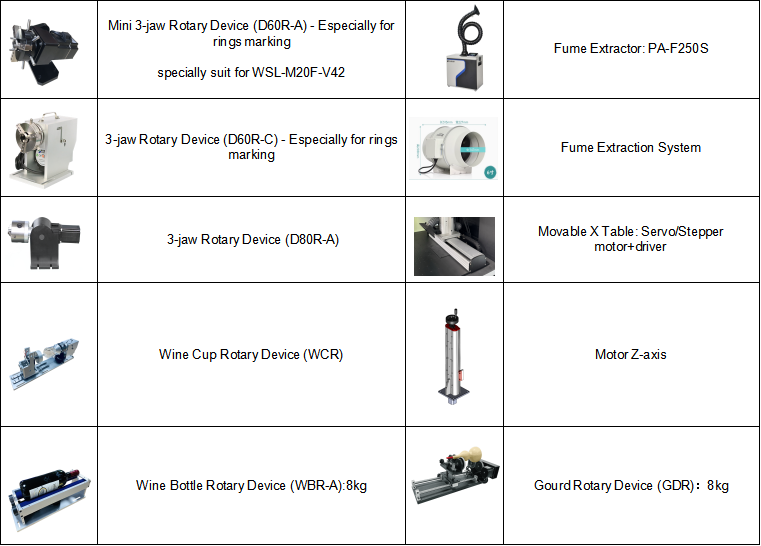

Optional Devices
Payment
Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.
T/T, PayPal, Western Union, Credit Card, Alibaba.
Shipment
The machine will be sent out within 3-6 working days after payment is received.
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.
Packaging
International standard plywood box / anti-shock paper box
Warranty
1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.
2. Wisely will send you the parts and take the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)
Training
Detailed user manual & step-by-step operation videos
Fast response (16 hours/day online support)
Real-time remote guidance via TeamViewer, Skype, or WhatsApp
