Laser Engraving Machine - 3040/4060/6090HS

Products

CO2 Laser Engraving & Cutting Machine

WISELY HS Series laser cutting & engraving machine is mainly used to cut thin and soft non-metal
materials, such as leather, fabric,textile, cloth, paper and so on. Meanwhile, the machine can cut or
engrave thick acrylic, bamboo, plastic, marble, glass, woods, etc.
It can process the plexiglas products, acrylic display panel lenses, wood carving, advertising products,
crystal characters, models, toys, furniture and so on.

Online message

Contact information

0086-150-1350-9330

Technical Parameters

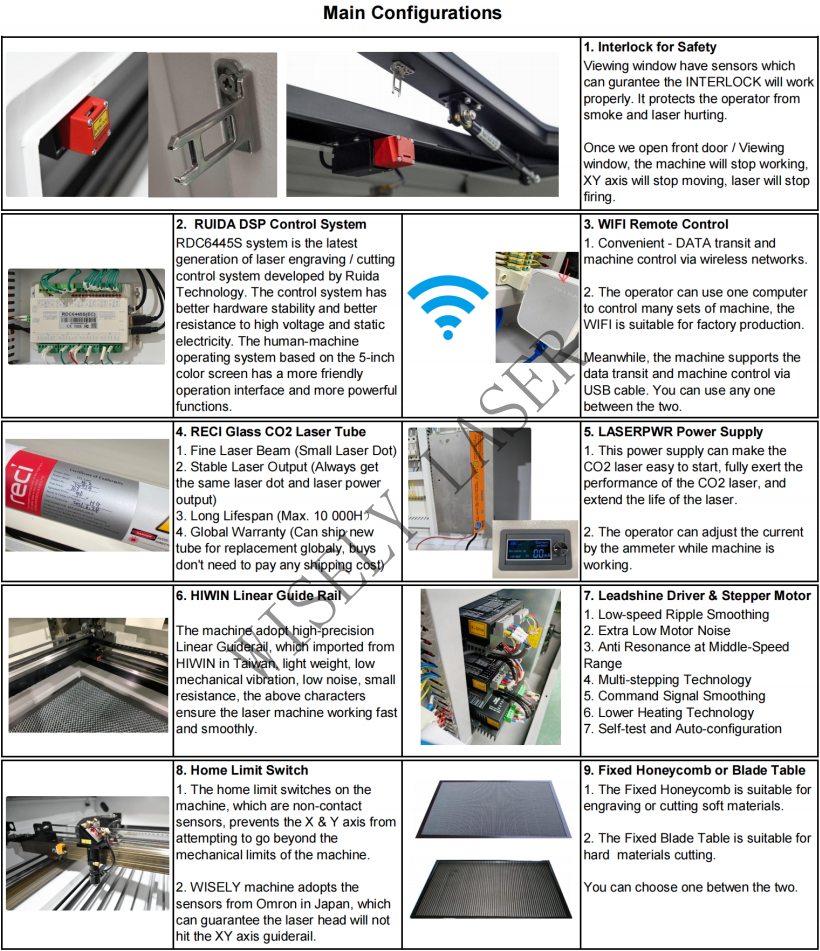

Feature

1. The complete Interlock System can protect the operator from smoke or laser radiation hurting once the operater opens any door on the machine.

2. RUIDA DSP controller RDC6445G system is the latest generation of laser engraving / cutting control system. The control system has better hardware
stability and better resistance to high voltage and static electricity.

3. Strong competibility: DSP control system supports windows XP/7/8/10/11, virtual printer driver model and Flying cutting.

4. WIFI wireless control system can help you control more machine by one computer, and DATA Transit is faster and easier.

5. Equipped with high-precision Guide Rail, with small resistance, low machabical vibration and beautiful appearance.

6. The laser tube from RECI Laser guarantees high stability and fine laser beam, the lifespan of tube can reach 10 000 hours. The laser has Global Warranty ,
the new laser tube for replacement can be shipped globaly, buyers don't need to pay any shipping cost.

7. The smart water-cooling system can keep the temperature inside tube while the laser is firing, it ensures the stable output of laser.
8. The machine is suitable for thin & soft material smoothly cutting or engraving at high speed, and can cut thick acylic, wood, bamboo, etc.

Application

WISELY HS Series laser cutting & engraving machine is mainly used to cut thin and soft non-metal materials, such as leather, fabric, textile, cloth, paper and
so on. Meanwhile, the machine can cut or engrave thick acrylic, bamboo, plastic, marble, glass, woods, etc. It can process the plexiglas products, acrylic display
panel lenses, wood carving, advertising products, crystal characters, models, toys, furniture and so on.

Technical Parameters

Model	WSL-E1070	WSL-E1410
Working Area	1000*700mm	1400*1000mm
Laser Power	80W /90W /100w /130W
Laser Type	RECI Glass CO2 laser tube (Lifespan: Max. 10,000 hours)
Transmitting Parts	HIWIN Linear Guide Rail &Belt transmmission
Drive Type	Stepper Driver / Motor
Software / Controller	RUIDA DSP Controller 6445S & RDWorks
Max. Engraving Speed	600mm/s
Max. Cutting Speed	300mm/s
Max. Corner Acceleration	5000mm/s
Recommended Corner Acceleration	Less than 3500mm/s, we suggest you to use different Corner Acceleration for different materials
Mechanical Vibration in process	0.1 ~ 0.6
Positioning Accuracy	≦0.015mm
Min. Forming Character	English:1.5 x 1.5mm
Power Supply	220V±10% 50HZ or 110V±10% 60HZ
Software Supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic Format Supported	PLT, DXF, BMP, JPG, GIF, PGN, TIF and so on
Working Table (DEFAULT)	Fixed Honeycomb / Blade Table
1 Air Pump and 1 Water Pump & Chiller	Yes
Exhausting System	Yes
Gross Power	<1200W
Net Weight	350KG	450KG
Gross Weight	450KG /5.23CBM	550KG /6.3CBM
Machine Size	185140105CM	207163110CM
Package Size	212210140CM	240230140CM
Operating Temperature	0℃-45℃
Operating Humidity	5%-95% Free of condensed water
