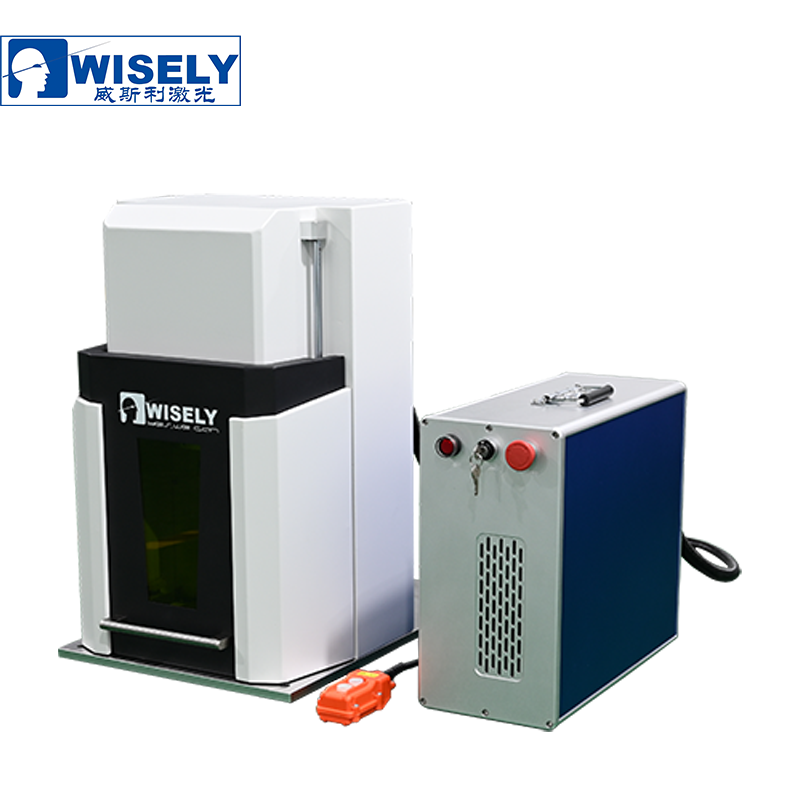

Estilo portátil: fácil de mover y cargar el material, puede funcionar con un sistema de coincidencia automática personalizada. Computadora de pantalla táctil: 10 '' PC para una operación conveniente Recinto separado láser: protección con láser para la seguridad
150-1350-9330
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.
7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS, AutoCAD, Solidworks etc...
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical Parameters
Model | MY-M20F-III | |||||||||
Power | 20W / 30W / 50W / 100W / 120W | |||||||||
Laser Wavelength | 1064nm | |||||||||
Standard Marking Area | 150mm*150mm | |||||||||
Optional Marking Area | 70*70 /100*100 /200*200 /250*250 /300*300 /400*400mm | |||||||||
Marking Depth | ≤2mm | |||||||||
Marking Speed | 7000mm/s | |||||||||
Minimum Line Width | 0.015mm | |||||||||
Minimum Character | 0.2mm | |||||||||
Repeated Precision | ±0.003mm | |||||||||
Fiber Laser Source | JPT LP (Optionlal Raycus or IPG) | |||||||||
Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
Controller (software) |
JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) |
|||||||||
Life span of Fiber Laser Module | 100 000 hours | |||||||||
Beam Quality | M2<1.3 | |||||||||
Focus Spot Diameter | <0.01mm | |||||||||
Output Power of Laser | 10%~100% | |||||||||
Output Frequency of Laser | 1~600KHz | |||||||||
Power Stability (8h) | <±1.5%rms | |||||||||
System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits | |||||||||
Cooling Mode | Aircooling | |||||||||
Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
Power Requirement | <450W | |||||||||
Dimension (L*W*H) | 700*400*650mm | |||||||||
Package Size | 850*500*870mm | |||||||||
Net Weight | 45KG | |||||||||
Gross Weight | 75KG |
Optional Devices
payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable)
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Shipment
Machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.
Packaging
International standard plywooden case.
Warranty
Whole machine has a warranty period of 24 months since the production date.
Training
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
