Enclosed CO2 Laser Marking Machine

Fully enclosed structure design, with a sturdy protective shell, protect the operator from laser radiation. CO2 Laser Marking Machine adopts the RF CO2 laser source imported from CRD / Coherent, equipped with high-speed galvanometer scanning system, with superior laser beam, small divergence angle and integrated laser structure. It's convenient to maintenance, stable performance, high reliability and long lifespan ( max 45,000 hours). The equipment is low processing cost, without any consumption, large marking area, high efficiency.

Online message

Contact information

0086-150-1350-9330

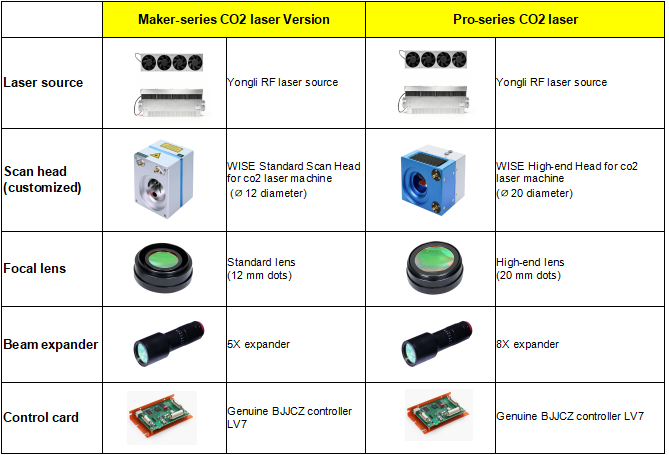

Technical Parameters

Feature

1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable light and low failure rate.

2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision.

3) The industrial control computer has strong capacity of resisting disturbance, assuring the stable work during the long period of industrial environment.

4) With powerful and friendly controller and software, easy operation, raise the working efficiency.

5) With reasonable and whole structure design, better stability and higher reliability.

6) CRD / COHERENT tube can be refilled, excellent performance, longer life (Max. 45000 hours) and without maintenance.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other format file output from CorelDraw, PhotoShop, AutoCAD, etc..

Application

Materials: Most of Non-metallic materials such as ceramics, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.

Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.

Parameter

Model				MY-M30C-V
Power				30W / 60W / 100W
Marking Area				140*140mm
Optional Marking Area				7070mm / 110110mm / 200200mm / 250250mm / 300mm*300mm
Marking Depth				≤5mm Acrylic
Minimum Line Width				0.10mm
Minimum Character				0.3mm
Repeated Precision				± 0.01mm
Laser Wavelength				10.6um
CO2 Laser Source				COHERENT
Optional Laser Source				CRD / YONGLI
Controller and Software (EZCAD)				JZC Controller & EzCAD2 Software from China (Optionlal EzCAD3 or SAMLight)
Scan Head				Galvo-Tech / WISE SCAN from China
Marking Speed				≤ 7,000mm/s
Repeated Frequency of Laser				1-200KHZ
Marking Type				Dynamic Mark / Static Mark
System Operation Environment				Windows XP / 7 / 8 / 10 / 11-32 / 64bits
Cooling Mode				Air cooling
Temperature of Operation				15℃~35℃
Communication Interface				USB
Lifespan of CO2 Tube				Max.45,000 hours
Voltage				220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
Power Consumption				1.2KW
Demension				11808001700mm
Package Size				13509501950mm
Net Weight				260KG
Gross Weight				380KG
Optional (Not free of charge)				Rotary Device, Moving Table, Lens, Fume Purifier, other customized Automatic Matching System
